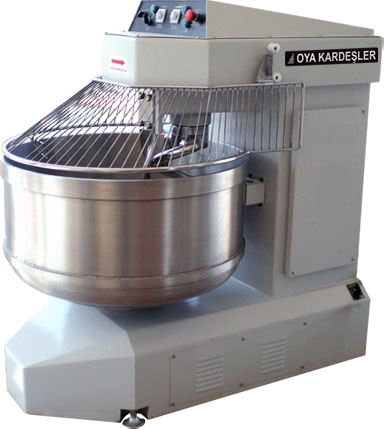

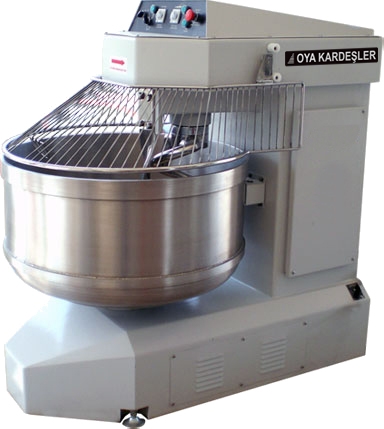

SMX3000Spiral Mixer with Fixed Bowl
Spiral kneading machines are commonly preferred by bakery and pastry shops in order to shorten the usual kneading time. This also provides more homogenate dough mixture and bigger volume bread. Machine works in manual and automatic cycle with two programmable timers. The bowl, spiral arm and bar are made of stainless steel. Reverse bowl rotation. Due to belt transmissions of main power the machine noise level is quite low. Mixer is mobile and there is a fixing device on the mixer.
Technical Specification
Model |
Unit |
SMX 25 |
SMX 50 |
|
SMX 100 |
SMX 150 |
Flour capacity |
kg |
25 |
50 |
|
100 |
150 |
Dough capacity |
kg |
40 |
80 |
|
160 |
250 |
Bowl sizes (Øxh) |
mm |
500x360 |
700x350 |
|
900x430 |
1000x470 |
Width (W) |
mm |
650 |
750 |
|
900 |
1000 |
Length (L) |
mm |
105 |
1300 |
|
1400 |
1500 |
Height (H) |
mm |
105 |
1200 |
|
1350 |
1400 |
Electrical power |
Kw |
1.5 - 2,5 |
3.5 - 5,5 |
|
5,5 - 7,5 |
7,5 - 10 |
Weight of machine |
kg |
220 |
380 |
|
800 |
890 |
Manufacturer reserves the right to change specifications without prior notice.
