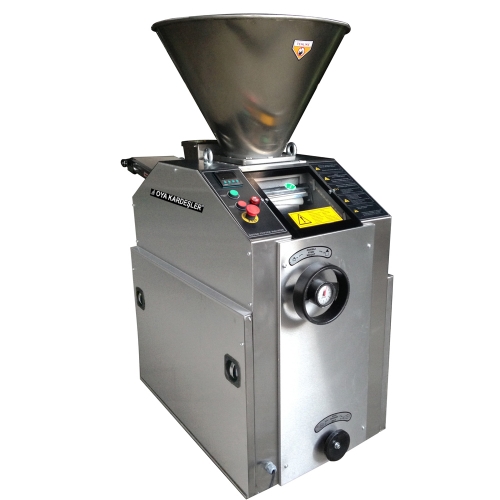

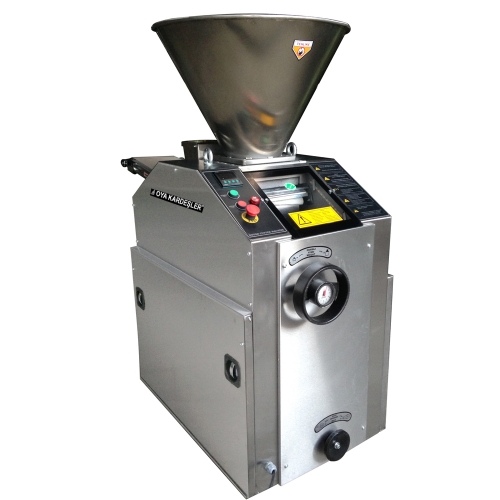

DOUGH DİVİDER- VOLUMETRİC DİVİDER:OKM3001
Our volumetric dough divider machine, which is the latest system of the dough processing technology, cuts the dough at the requested weight in gram without pressing and harming the dough.

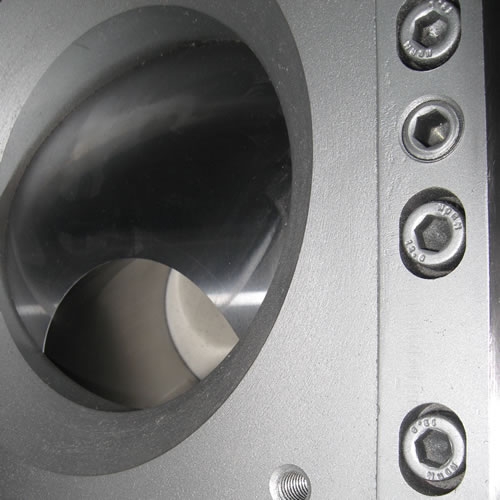

All the surfaces contacting the dough are made of stainless steel. It cuts the dough with its weight thanks to the vacuum generated by piston cylender movement.
The lubrication system is automatically operated. Thus, the machinery is provided to have longer life. All surfaces are lubricated with the oil which is compatible of food.
The adjustment of gram can be optionally manufactured both manually and mechanically. 4 types of production is performed which is varying between 50-200 gr,80-350gr, 150-600 gr, 250-1000 gr.
Technical Specification
Model |
Unit |
Okm3001 |
Capacity |
pcs / h |
1600 – 2000 |
Dough dividing range |
g |
( 50 – 200) (80-350) (150 – 600) (250 – 1000) |
Hopper capacity |
kg |
60 |
Width (W) |
mm |
620 |
Length (L) |
mm |
1320 |
Height (H) |
mm |
1450 |
Height of dough exit (H1) |
mm |
930 |
Weight adjusting system |
|
Manual |
Electrical power |
Kw |
1.5 |
Weight of machine |
kg |
approximately 500 |
Manufacturer reserves the right to change specifications without prior notice.
